Click on the Alignment Manager icon to define a new alignment name.
A dialog box with a list of alignments and their parameters opens up. To create a new alignment, right-click in the Alignment manager dialog and select New Axis.
Prior to designing a new alignment, you need to define it by stating the initial properties (name, description, starting station, lanes type…) and define it as a current alignment.

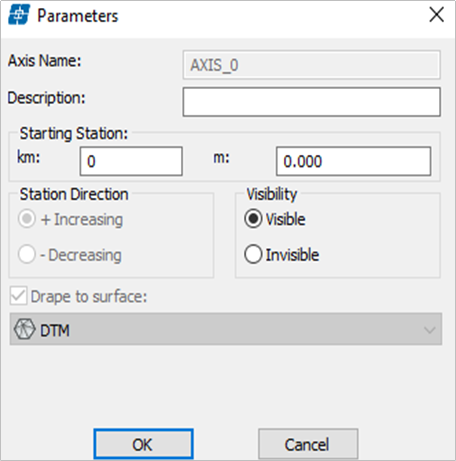

In the Parameters sub setting define new alignment name and starting station. If you have more than one alignment, you can make a selected one invisible. This means that all layers related to a selected alignment can be automatically switched off.
When parameters for new alignment are defined, set the design speed for alignment in Category subsetting and define design speed influences on alignment design parameters.
If you press the button
, you can define different speeds for different areas along the alignment.

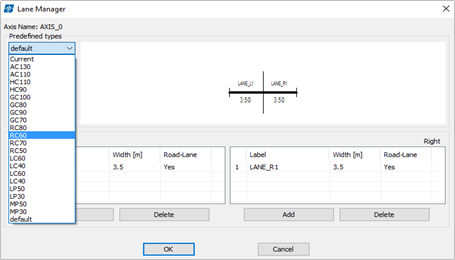

In Lanes sub setting define the characteristic lanes section. You can define lanes separately for the left and right side according to alignment. There are some predefined lane types available in the Predefined types window.
