Introduction

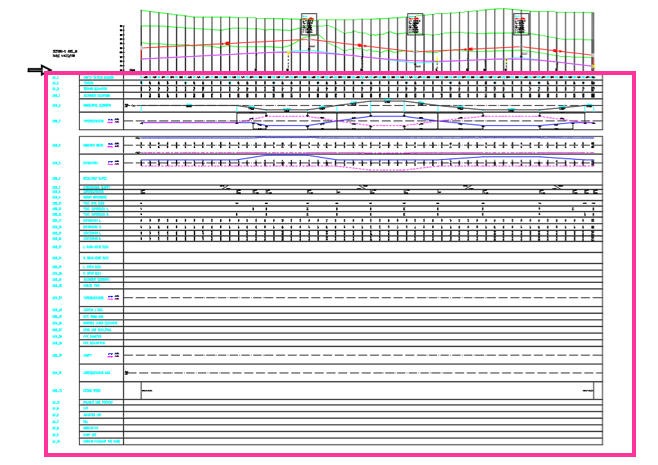

This tutorial shows how to change the rubrics, located in the table below the profile.
1. Tables Manager

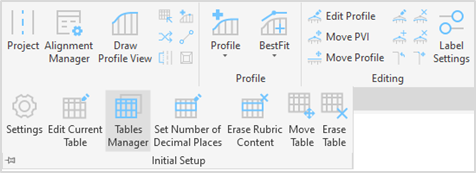

1. Run the Tables Manager (31C1) command.
The dialogue box shown in the image below opens:

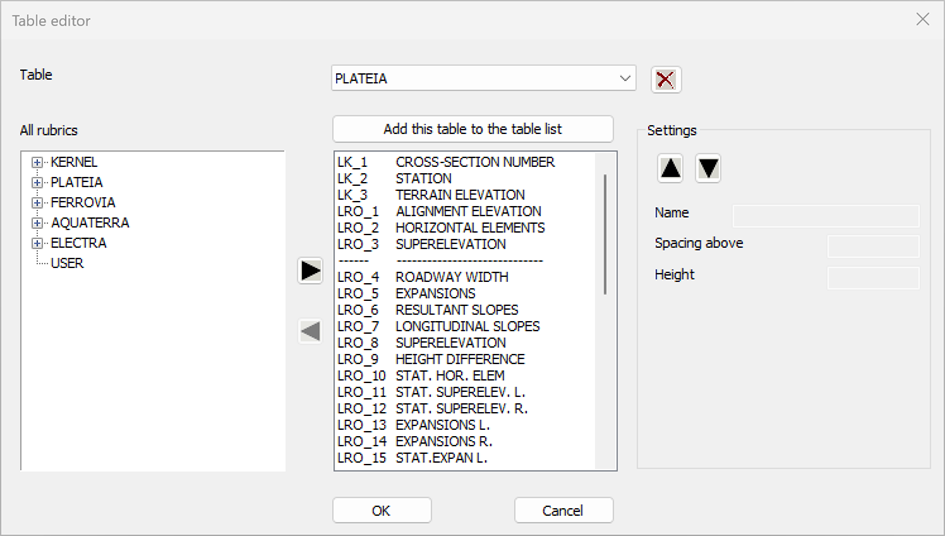

By default, the PLATEIA table opens. The user can then create his own table. This is the table that is then displayed below the profile.
1.1 Creating a new user-defined table

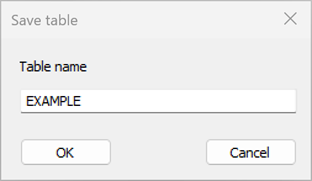

2. Click “Add this table to the table list” button and define a table name. In this tutorial, it is called EXAMPLE.
Confirm by pressing the OK button.

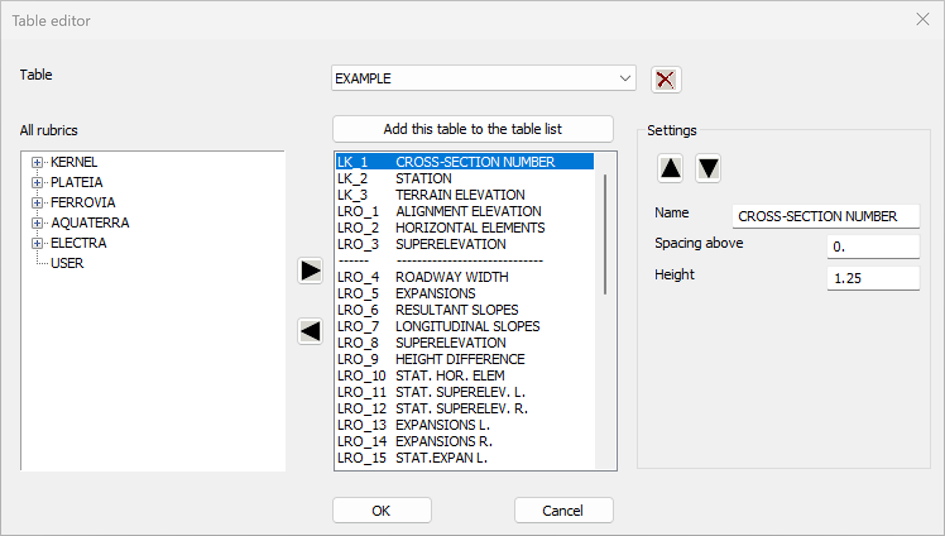

This new table, which is called EXAMPLE, now contains all the sections that were in the PLATEIA table. But we can change them now.
The user can:
- change the position of the rubric (with the up and down arrows),
- change rubric names, spacing above, and height,
- delete existing rubrics and
- add new rubrics.
1.1.1 Change the position of the rubric
3. Click on one rubric in the table list.

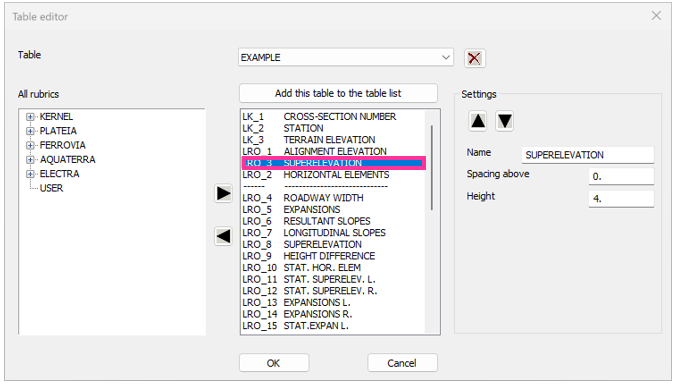

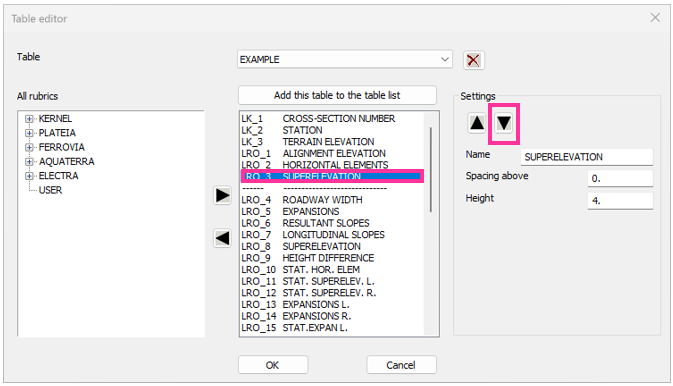

4. Click on the up arrow and the rubric will move one position higher.
1.1.2 Change rubric names, spacing above and height
5. Click on one rubric in the table list.

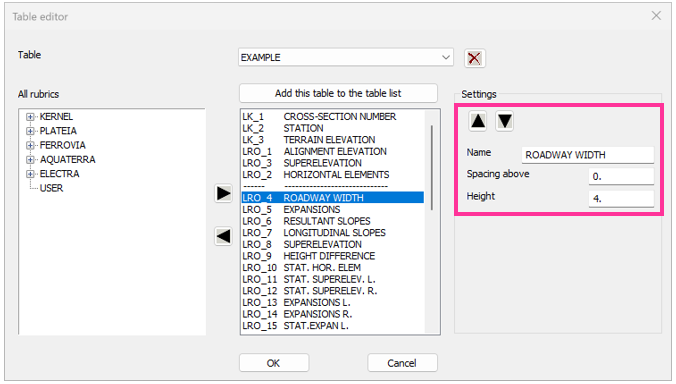

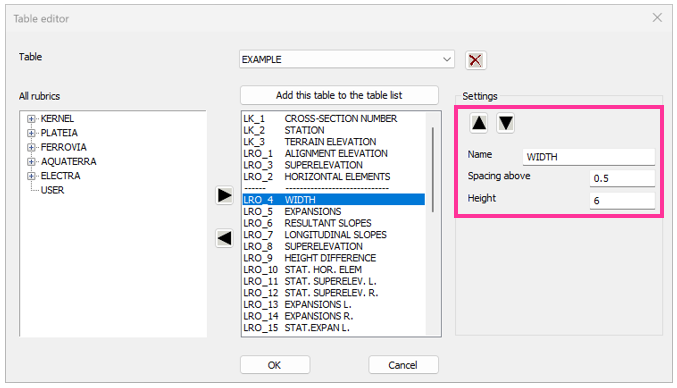

6.Change the rubric name, spacing above and height.
1.1.3 Delete existing rubrics

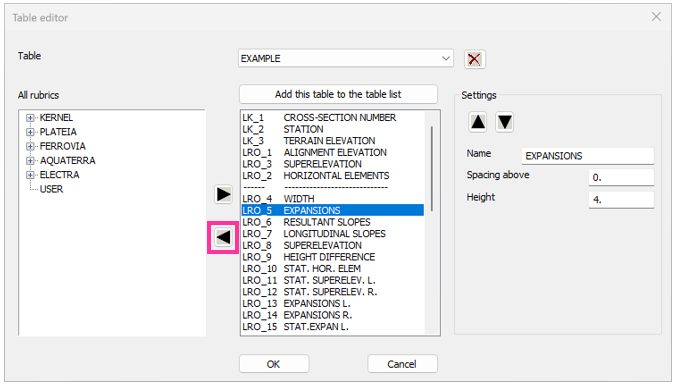

7. If you want to delete an individual rubric, select it in the list and click on the arrow pointing to the left.
Deleted rubrics:
1.1.4 Add new rubrics

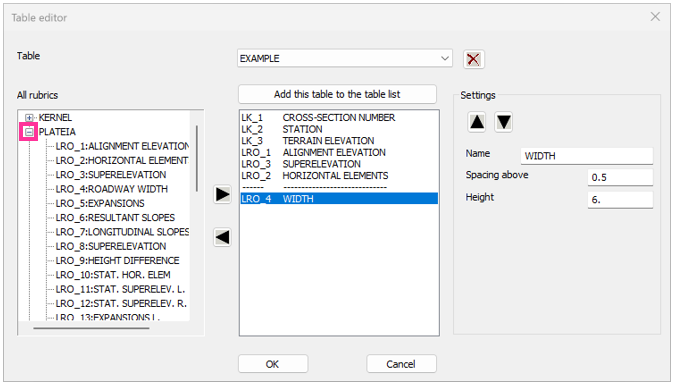

8. Click on the plus button in front of the Plateia rubric.

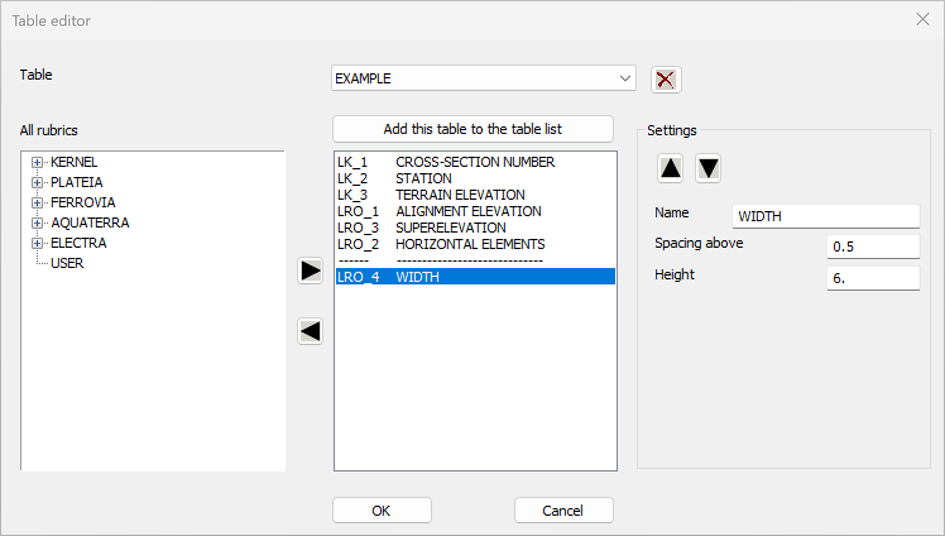

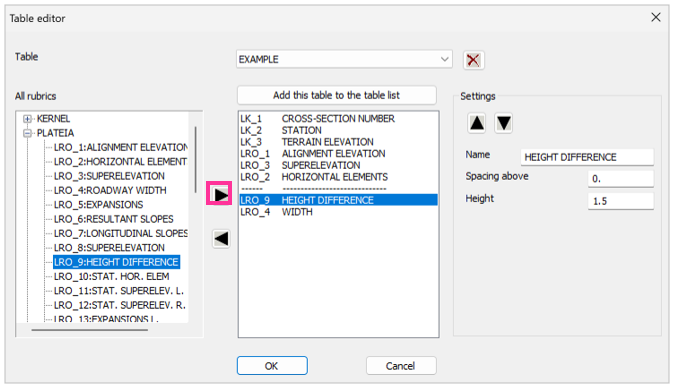

9. Click on one of the rubrics you opened in the previous step and then click on the arrow pointing to the right.

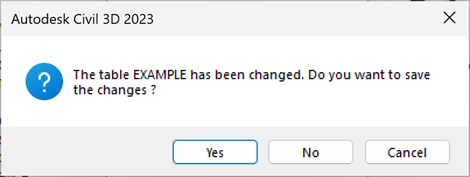

After defining the table, confirm by clicking the ok button three times.
2. Profile
Now it's important that when you run the Draw Profile command, in the upper part of the dialog box, select the new table option and select EXAMPLE from the drop-down menu.
1. Run the Draw Profile View (31D1) command.

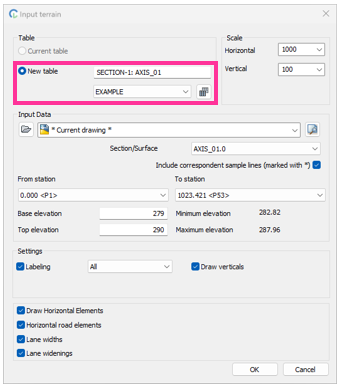

2. Select the new table option and then select EXAMPLE from the drop-down menu.
3. Confirm by pressing OK.

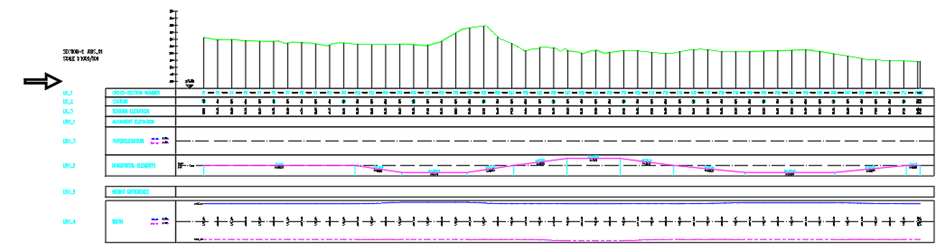

4. Define the table insertion point in the drawing.
